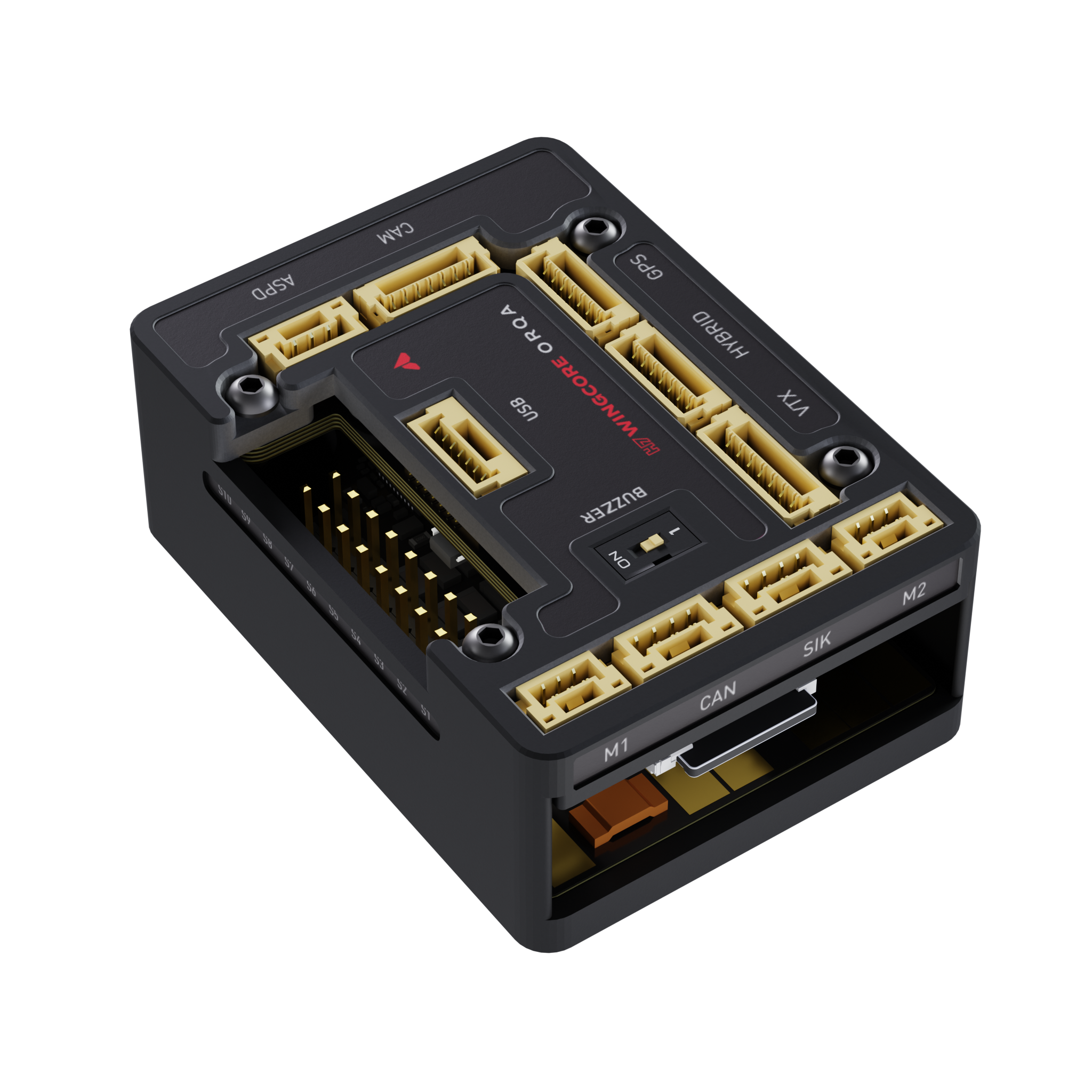

H7 WingCore

Created by Orqa FPV Support, Modified on Tue, 28 Apr at 9:53 AM by Orqa FPV Support

Fixed Wing Flight Controller

The H7 WingCore is an NDAA-Compliant Flight Controller designed and developed specifically for fixed wing drones, VTOLS, and UAVs. It features a powerful STM32H743 MPU, which runs any of the common flight controller firmware (iNav, ArduPilot, PX4).

WingCore is equipped with enough servo outputs for even the most complex of fixed wing platforms, including the multi-servo requirements of VTOLs, and features a direct solder-free connection to most peripherals, including direct connection to Orqa’s long range C2 links, and Video Downlinks, but it also uses reliable, lockable JST-GH connectors for connections to other parts of the drone.

Features and Specifications

Twin (orthogonal) ICM-42688 IMUs
12s (50V) 8A Regulator for 5V Supply
12s (50V) 10A Regulator for 6/7.2V Servo Power Supply (solder-jumper defined voltage)
160A On-Board Current Sensor
Ear-piercing buzzer for lost-model finding (with on-off switch)
Preinstalled iNav Firmware

Firmware

INAV and Ardupilot firmwares are available for download.
